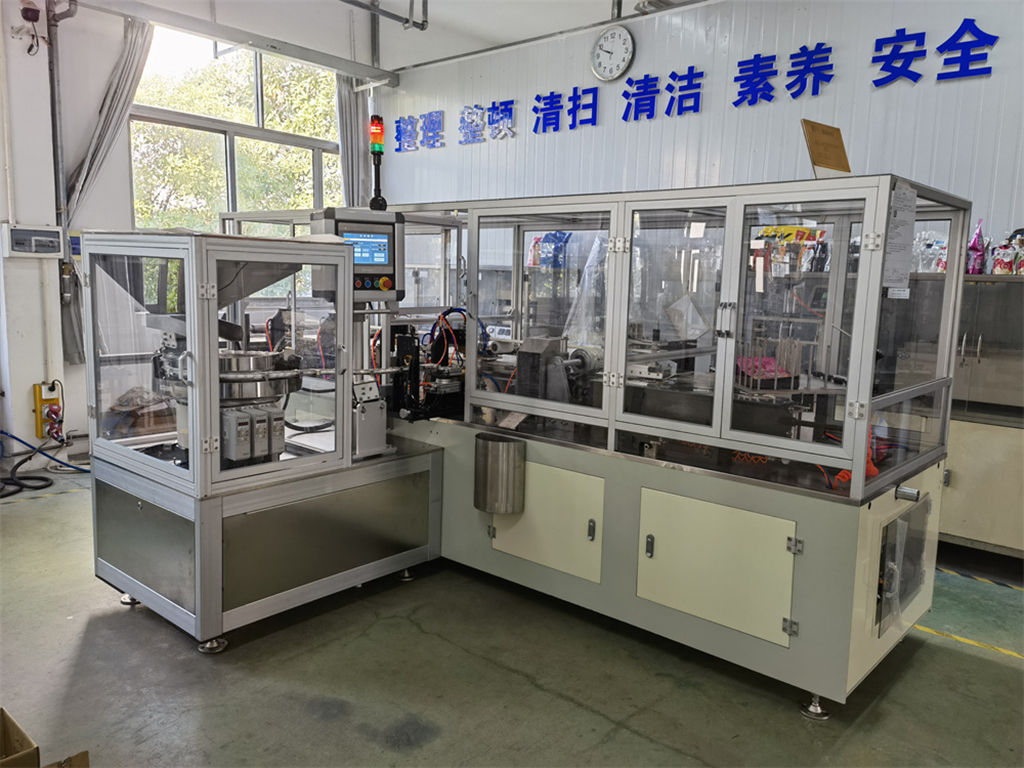

NCA1620B-25 Automatic Pouch Spout Inserter
Usage
1.The machine is used to cut an angle and weld a plastic spout on the cut automatically.
2.It is suitable for the large pouches of drinks, chrysanthemum MSG, grape sugar powder, washing liquid, hand washing liquid and cosmetics etc.
3. 304 food-grade stainless steel, computer control, touch screen display with Mandarin and English, printing function, and automated alarm for ribbon exhaustion. Drop material detection, no heat sealing when there is no material in the bag, reduce waste of bags by preventing material drops.
4. Sensible design, small size, simple to use. All items have the necessary credentials, which you are invited to view.
5. To prevent material deformation from extrusion, this equipment can be customized based on the properties of the material.
6. It may have high precision control, stable operation, multiple-stage frequency conversion speed control, and low energy consumption.
7. If you require bespoke products, you may also get in touch with us directly.
8. Encourage free proofing to assist different sectors of the economy develop enterprise packaging intelligence.
Advantage
1、Capacity：23-25pcs/min.
2、Pouch size(L*W):（180-420）×（120-300）mm
3、Pneumatic sealing mode
4、Automatic Angle cutting function.
Working process
◆ Panasonic Servo Motor ◆ MITSUBISHI PLC ◆ WEINVIEW Touch Screen
◆ SMC Cylinder ◆ Germany Vacuum Pump
Main Technical Specification
| Pouch size (L×W) | Corner spout: （180-420）×（120-300）mm Min 120*100 |
| Cutting angle | 17º---45º±2º |
| Spout type | Short spout, supplied by the customer.（φ5mm-φ25mm） |
| Production efficiency | 25 pieces/min（the smaller size pouch）23 pieces/min（the bigger size pouch） Note: The production efficiency varies because of the material and the difference of the pouch size. |
| Power | AC380V，50HZ，4.5KW，3P |
| Compressed air | 0.5-0.7Mpa, 250NL/min |
| Dimension (L×W×H) | 4500×1900×1960mm |
| Cooling water | 8L/min |
| Weight | 2200Kg |
